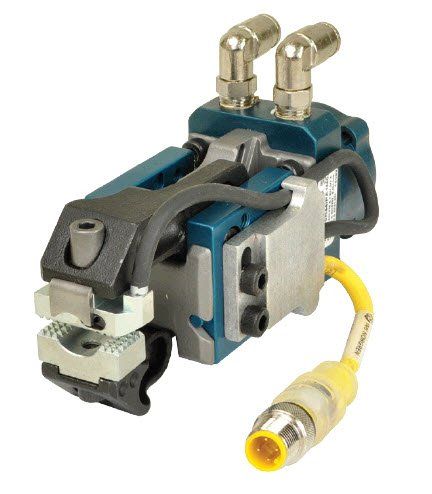

PGS10 Regular Jaw
General purpose gripper for transfer finger.
Variations in Top and bottom Jaw Angles.
In-pad, Double Blank and Part Present Sensors available
Choices of Pads widths and material thickness available.

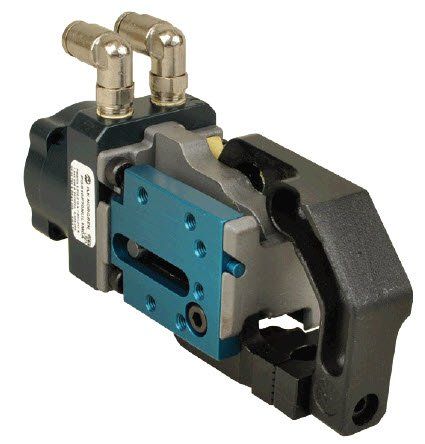

PGS10 Flange Jaw
Gripper is mounted 90 degree to the gantry tooling
Flange jaw allows gripper to reach around the formed flange edge of the blank
Variations in Top Jaw Angle..
In Pad or Part Present Sensor Available.
Choices of Pad widths and material thicknesses available.

PGS10 Chisel and Shovel Jaw
Low profile chisel jaws can be used in applications in dies with low or tight clearances
14 degree lower chisel jaw allows for the motion or shake of the material during transfer.
Variations in Top and Bottom Jaw Angles (With Teeth or W/O Teeth).
In-Pad, Double Blank and Part Present Sensors available.
Pad width Fixed, Various Thickness available
